OSRAM 350W+RGB LED
Source：OSRAM 350W + RGB LED
Beam angle：59°
Filed angle：95°
Specification
OPTIC
Source：OSRAM 350W + RGB LED
Beam angle：59°
Filed angle：95°
Lifetime：20000 H
EFFECT
1 built-in programs
Strobe：0.5 ~ 30 Hz
Dimmer Curve：4 kinds
CONTROL & PROGRAM
Channel：5 / 6 / 7 CH
Protocal：DMX512，RDM
Data connection：3/5PIN XLR
Display：LCD display
SOFTWARE
Via DMX signal to update
Intelligent temperature protection to ensure LED service life
HOUSING
Aluminum alloy structure
Natural heat dissipation
Facilitates various splicing shapes
OTHER
IP rating：IP30
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：580 W
SIZE & WEIGHT
Size：471 × 278 × 425 mm
N.W：5.2 kgs

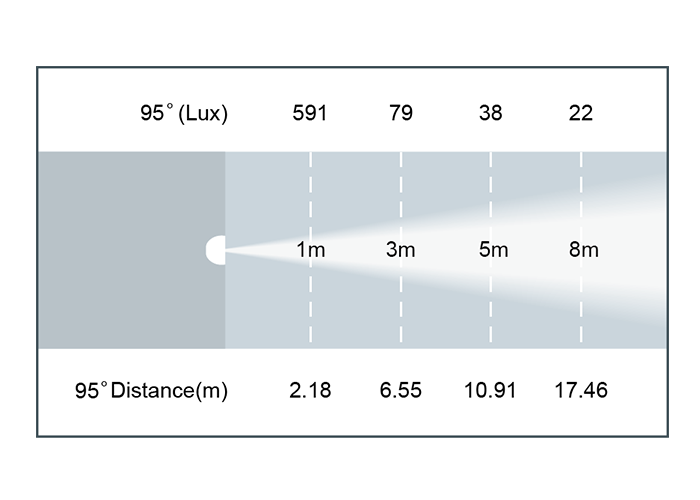

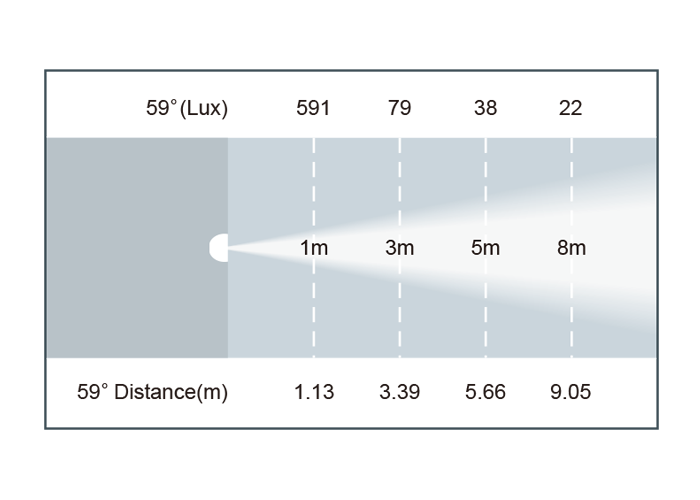

Photometrics

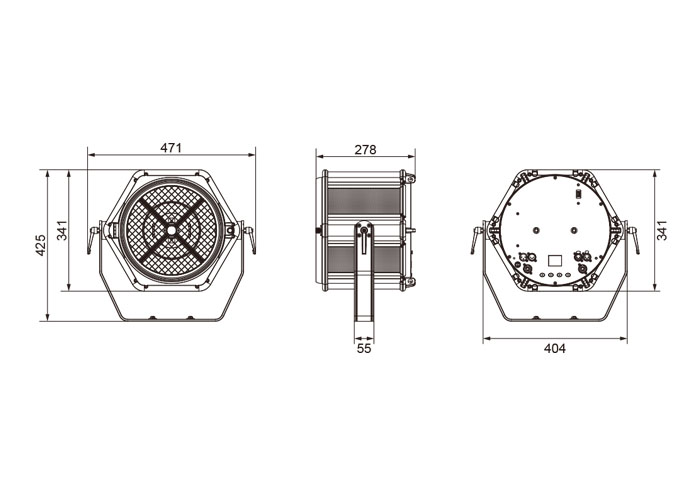

Dimensions
